Robot Capture and Containment Netting
Robot Capture and Containment Netting
Kodiak Sports brings custom sports netting fabrication to robotics with configurable Robot Capture and Containment Netting. Choose flat cinch panels or box-style cinch hoods, with custom dimensions, reinforced rope borders, and drawstring options tailored to your application.
In the event of a robot malfunction, unauthorized operation, or aggressive or violent behavior, containment netting may be able to help limit movement while trained personnel carry out an emergency shutdown or disable the robot. Effectiveness depends on the robot and application; netting does not replace a dedicated kill switch or emergency-stop system.
Manufactured with 2″ square nylon mesh, these nets are available in #36, #42, #60, and #96 twine weights, including our heaviest #96 construction for demanding containment applications.
Available Configurations

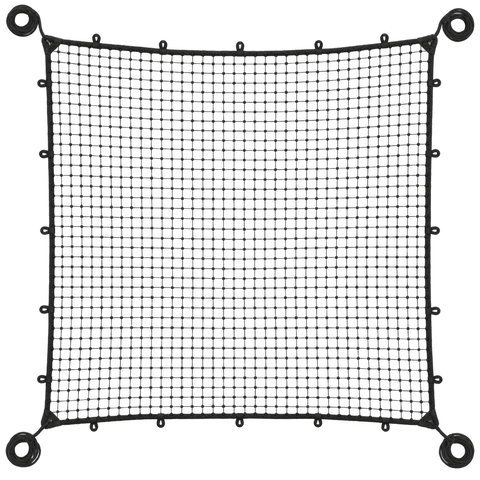

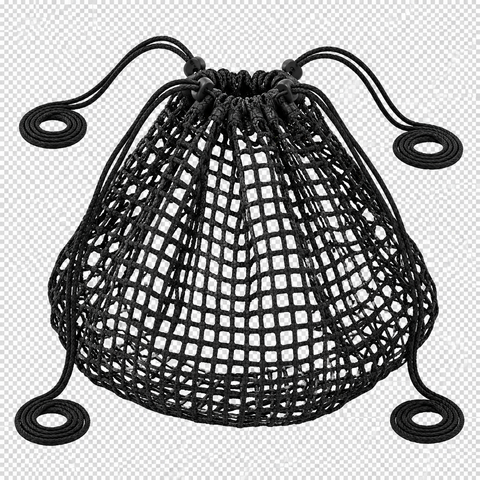

- Flat Cinch Panels: Square or rectangular panels with reinforced rope borders and draw ropes that allow the net to gather around an object. Available in 12′ × 12′ and custom sizes.
- Box-Style Cinch Hoods: Five-sided net enclosures with a closed top, rope-reinforced corners, and an open bottom with a drawstring closure. Sizes include 6′ × 6′ × 6′, 8′ × 8′ × 8′, and 4′ × 6′ × 8′.
- Custom Fabrication: Specify your dimensions, netting weight, rope attachment locations, and additional binding ropes.
Available Netting Weights
| Nylon Twine | Breaking Strength / Strand |
|---|---|
| #36 | 350 lbs |
| #42 | 400 lbs |
| #60 | 600 lbs |
| #96 | 1,000–1,200 lbs |
Built Around Your Application
From robotics development and testing to equipment handling and containment planning, Kodiak Sports can fabricate netting to your specifications. Extra Rope Borders, Steel Rings Sewn in Corners, etc.
Size selection should account for the robot’s overall height, extended arm reach, and the additional material needed for wrapping and cinching.
Contact Kodiak Sports for a custom quote. Provide your robot’s dimensions and weight, intended use, preferred net configuration, and quantity.
Containment performance depends on the complete assembly and application. Twine breaking strength is not a finished-net load rating. These nets are not rated for overhead lifting or a substitute for emergency-stop systems and engineered safeguards.
